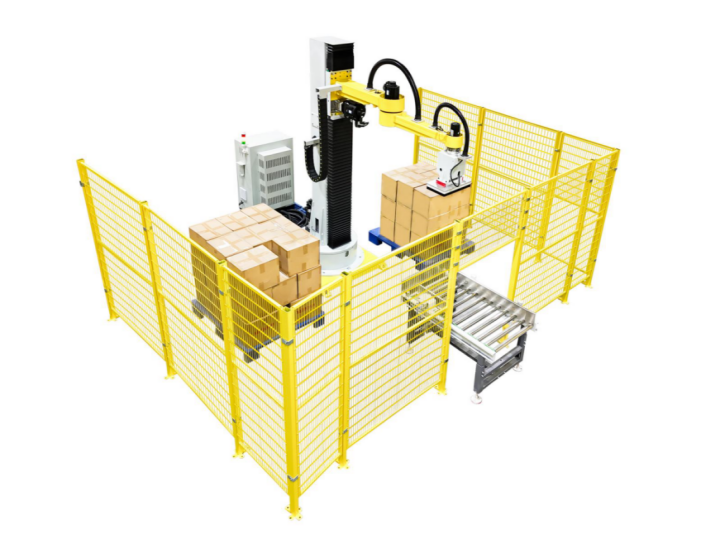

Single-Column Palletizing Machine

  • The single-column palletizing machine is mainly used for the palletizing process at the end of production lines across various industries. Its structure is a single-column design, consisting of a lifting axis, a transverse axis, a main rotation axis, and a gripper rotation axis, forming a fully servo-driven four-axis palletizing system. Controlled by a motion controller and driven by four servo motors, it features 290° rotation and can simultaneously palletize two layers of boards. Its performance is comparable to palletizing robots, with a compact and elegant design, easy adjustment, and suitability for a variety of products and stacking patterns.

    The machine incorporates advanced foreign rotary column robot technology, offering a refined and attractive appearance. The stacking method is easily adjustable via the teaching pendant or wired remote control, making operation simple and intuitive.

  • It can operate independently or be integrated with an automatic pallet feeder and pallet conveyor to form a fully automatic palletizing system. The machine uses a handheld teaching pendant for intelligent, easy-to-operate control, significantly reducing labor requirements and work intensity.

  • Model: WEX-1800-70

    • Palletizing Speed: 7–9 cycles/min (actual capacity depends on product size, weight, packaging material, material characteristics, and gripper type)

    • Load Capacity: 70kg / 100kg / 150kg

    • Applicable Products: Cartons, film-wrapped packages, woven bags, large barrels

    • Applicable Pallet Size: L800–1200 × W800–1200 × H150–200 mm

    • Pallet Feeding Method: Manual or automatic

    • Palletizing Gripper: Suction cup or clamping plate

    • Palletizing Height: 1600–1800 mm from the ground (depends on gripper and carton height)

    • Working Radius: 2000 mm / 2350 mm

    • Total Machine Height: 2925 mm / 3130 mm / 3200 mm

    • Power Supply: 380V, 50Hz

    • Air Supply: 0.5–0.6 kg/cm², 1.5 m³/min

    • Machine Power: 8 kW / 8.5 kW / 10.5 kW

    • Machine Weight: 820 kg / 1600 kg / 1690 kg

    • Machine Material: Carbon steel with baked paint finish

    • Machine Color: Customizable (standard color: RAL 7035)

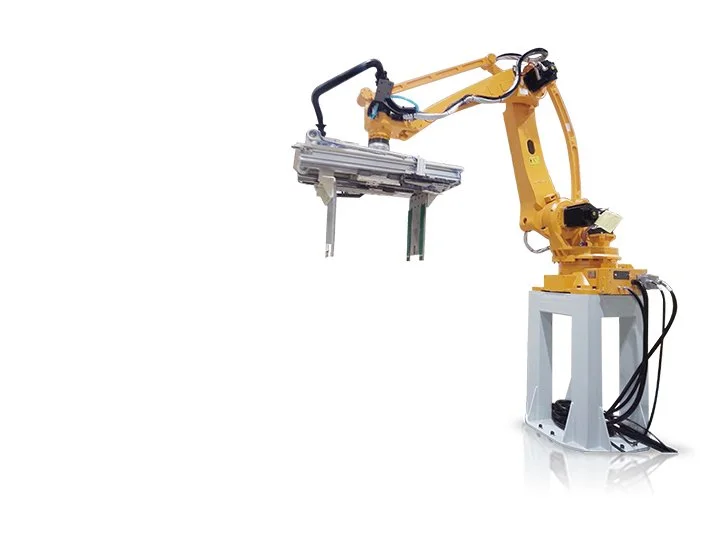

Lifting Palletizing Robot

  • The lifting palletizing robot is mainly used for the palletizing process at the end of production lines across various industries. It is based on a standard four-axis palletizing robot, with an added lifting axis, allowing the machine to palletize two pallets simultaneously. It is easy to adjust and suitable for a variety of products and stacking patterns. The robot can operate independently or be integrated with an automatic pallet feeder and pallet conveyor to form a fully automatic palletizing system. Controlled via a handheld teaching pendant, it enables intelligent and user-friendly operation, greatly reducing labor requirements and work intensity.

    • The added lifting axis allows the robot to raise or lower during palletizing to maintain the optimal working position.

    • The maximum palletizing height is increased, expanding the working range, improving production efficiency, and reducing costs.

  • Model: WEX-2000-50

    • Palletizing Speed: 10–15 cycles/min (actual capacity depends on product size, weight, packaging material, material characteristics, and gripper type)

    • Load Capacity: 50 kg

    • Applicable Products: Cartons

    • Applicable Pallet Size: L800–1200 × W800–1200 × H150–200 mm

    • Pallet Feeding Method: Manual

    • Palletizing Gripper: Suction cup

    • Palletizing Height: 1600–2000 mm from the ground (depends on gripper and carton height)

    • Working Radius: 2000 mm

    • Total Machine Height: 3200 mm

    • Power Supply: 380V, 50Hz

    • Air Supply: 0.5–0.6 kg/cm², 1.5 m³/min

    • Machine Power: 7 kW

    • Machine Weight: 980 kg

    • Machine Material: Carbon steel with baked paint finish

    • Machine Color: Customizable (standard color: RAL 7035)

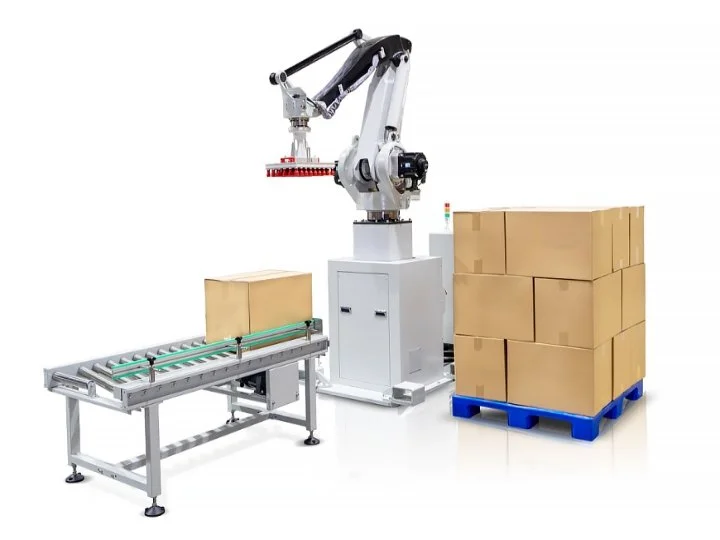

Robot Palletizing Machine

  • Efficiently stack cartons, bags, drums, and other products with precision and speed. With adjustable grippers, wide working radius, and PLC-controlled motion, this robot integrates seamlessly into production lines, reducing labor, improving safety, and maximizing palletizing efficiency. Ideal for fully automated logistics and packaging systems across diverse industries.

    • High-Efficiency Palletizing: Capable of stacking cartons, bags, drums, and various packaged products at speeds of 10–15 cycles per minute.

    • Versatile Product Handling: Adjustable grippers and customizable stacking patterns allow handling of different product sizes, weights, and materials.

    • Flexible Operation: Can operate independently or be integrated with automatic pallet feeders and conveyors to form a fully automated palletizing system.

    • Advanced Control System: PLC-controlled operation with precise motion control for smooth, accurate, and reliable palletizing.

    • Wide Working Radius: With working radii of 2400 mm and 3600 mm, suitable for large production areas and multiple pallet positions.

    • Safety & Stability: Designed with stable construction, automatic fault detection, and smooth start/stop functions to ensure operator and product safety.

    • Reduced Labor & Costs: Minimizes manual labor, reduces physical strain, and improves production efficiency.

    • Customizable Options: Suction or clamping grippers, adjustable height, and programmable stacking patterns allow for tailored solutions to specific production needs.

  • Model: YK-120-2400 & YK-180-3060

    • Palletizing Speed: 10–15 cycles/min (actual capacity depends on product size, weight, packaging material, and gripper type)

    • Load Capacity: 120 kg / 180 kg

    • Working Radius: 2400 mm / 3600 mm

    • Total Machine Height: 2900 mm / 3300 mm

    • Applicable Pallet Size: L800–1200 × W800–1200 × H150–200 mm

    • Main Power Supply: 380V, 50Hz

    • Air Supply: 0.5–0.6 kg/cm², 1.5 m³/min

    • Control System: PLC Control

    • Palletizing Gripper: Suction cup / Clamping plate

    • Machine Power: 10.5 kW

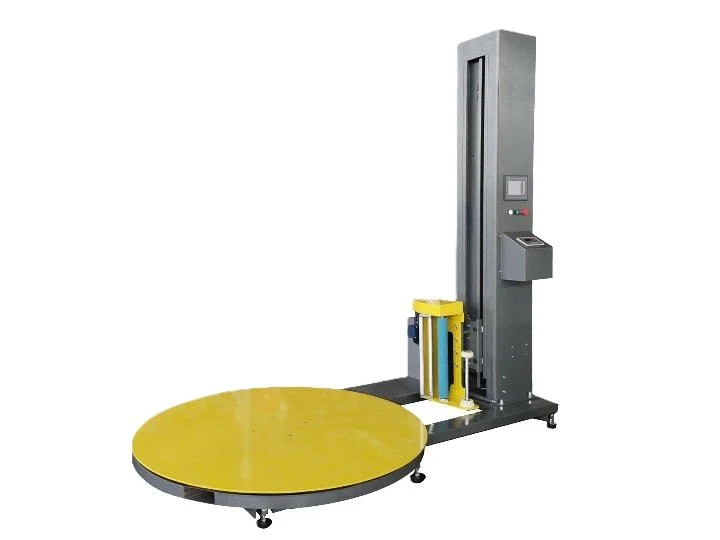

Weighing Wrapping Machine

  • The weighing wrapping machine is based on a standard pallet wrapper but adds integrated weighing functionality, making it ideal for packaging bulk palletized goods. It can weigh items directly on the pallet and optionally include a printing system, allowing connection to a computer to store data and generate spreadsheets automatically.

    This significantly improves packaging efficiency, reduces damage during transport, and provides additional benefits such as dust and moisture protection, as well as reduced packaging costs. It is an ideal choice to enhance product packaging quality and is widely used in logistics packaging for industries including:

    • Chemical fibers

    • Electronics and electrical appliances

    • Chemicals

    • Food and beverage

    • Paper manufacturing

    • Ceramics

    • Building materials

    • All hazardous components such as motors, wiring, and chains are fully enclosed for operator safety.

    • Brand-new 360° arc column design for a clean, elegant appearance.

    • PLC programmable control with selectable wrapping programs.

    • Optional multifunctional touchscreen HMI for real-time monitoring of machine status.

    • German Pepperl+Fuchs photoelectric sensors for automatic detection of pallet height.

    • Wrapping layers, operating speed, and film tension are fully adjustable for simple, user-friendly operation.

    • Independent variable-frequency pre-stretch film system with freely adjustable tension.

    • Top and bottom wrapping cycles are controlled separately, adjustable from 1–3 turns.

    • Automatic and manual operation modes; minimal daily maintenance required.

  • Model: YK1650F-CZ
    Wrapping Size (LWH): 500–1200mm × 500–1200mm × 2000mm
    Turntable Diameter: 1650mm (also available: 1500mm, 1800mm, 2000mm)
    Turntable Height: 195mm
    Turntable Weight Capacity: 1500kg
    Tensile Ratio: 200%–250%
    Wrapping Height: L1800mm H2400mm
    Turntable Speed: 0–12 rpm
    Packing Efficiency: 20–40 pallets/hr
    Power Supply: 1.35 kW, 220V, 50/60Hz, single phase
    Wrapping Material: Stretch Film W500mm, Core diameter 76mm
    Machine / Package Size: 2750 × 1650 × 2250mm / 2750 × 1740 × 720mm
    Machine Weight: 500kg

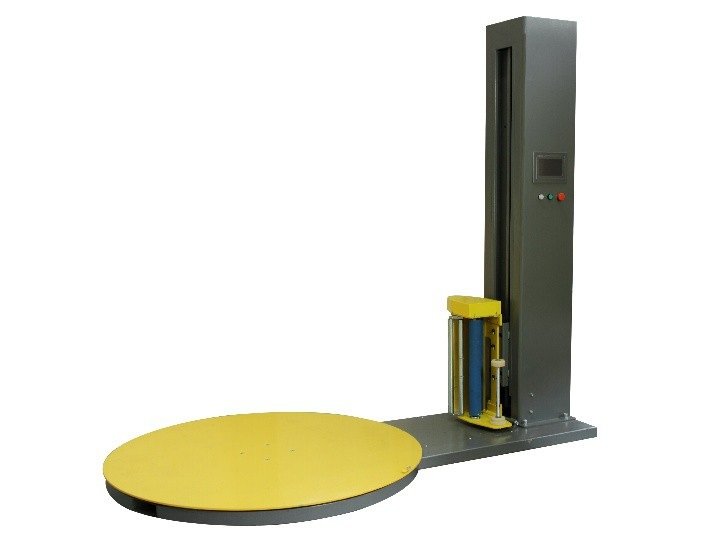

Pre-Stretch Wrapping Machine

  • Simply put, a pre-stretch wrapping machine stretches the film in the carriage before wrapping the product. This maximizes the film’s stretch ratio, reduces material usage, and saves packaging costs. The pre-stretch design allows users to wrap pallets more efficiently. Optional features include a printing system and computer connection for data storage and electronic record generation, further improving packaging efficiency while reducing damage during transport. This machine is widely used in industries such as fibers, electronics, electrical appliances, chemicals, food, beverages, paper, ceramics, and building materials.

    • Reliable Performance: PLC programmable control and inverter-driven system ensure stable, easy operation.

    • Durable Design: Sturdy construction with long service life; slow start/stop protects goods during operation.

    • User-Friendly Operation: Touchscreen interface for easy input of top and bottom wrapping parameters.

    • Adjustable Settings: Wrapping layers, film tension, and pre-stretch ratios are all adjustable.

    • Material Savings: Pre-stretch mechanism reduces film usage, allowing one roll of film to achieve the effect of two.

    • Advanced Monitoring: Automatic detection of pallet height, fault display, and optional recording of wrapped pallet counts.

    • Versatile: Suitable for large or irregular items; prevents dust, moisture, and abrasion during transport.

    • Model: YK1650F

    • Wrapping Size (LWH): 1200 × 1200 × 2000mm

    • Turntable Diameter: 1650mm (also available: 1800mm, 2000mm)

    • Turntable Height: 80mm

    • Turntable Weight Capacity: 1500kg

    • Tensile Ratio: 200%–250%

    • Wrapping Height: H2000mm / H2400mm

    • Turntable Speed: 0–12 rpm

    • Packing Efficiency: 20–40 pallets/hr

    • Power Supply: 1.32 kW, 220V, 50/60Hz, single phase

    • Wrapping Material: Stretch film W500mm, Core diameter 76mm

    • Machine / Package Size: 2750 × 1650 × 2350mm / 2750 × 1740 × 720mm

    • Machine Weight: 500kg

Learn more

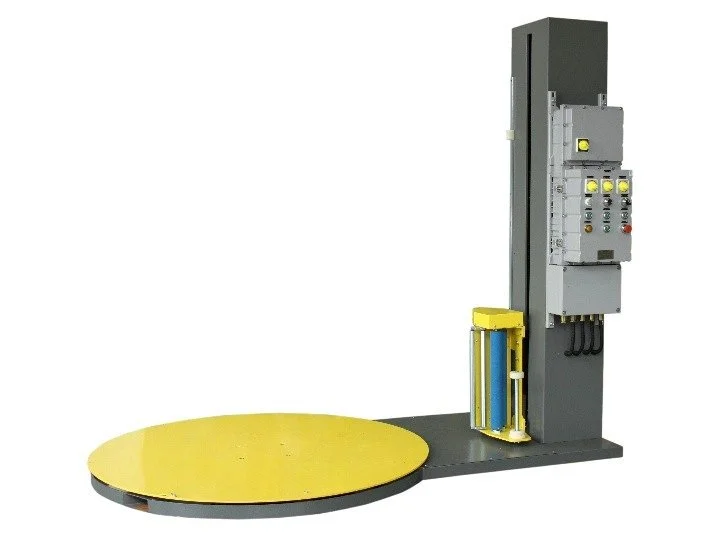

Anti-Explosion Wrapping Machine

  • The Anti-Explosion Wrapping Machine is designed for use in high-dust environments and chemical factories. It enhances logistics efficiency, reduces damage during transport, and provides dust- and moisture-proof packaging, while lowering material costs. It is an ideal solution to improve packaging quality for industrial equipment and palletized goods.

    The pre-stretch design ensures efficient film use, allowing one roll of film to achieve the packaging effect of two rolls, thus saving material costs. This machine is suitable for packaging large items shipped by container as well as bulk products. It is widely used in industries including:

    • Glass products

    • Hardware tools

    • Electronics and electrical appliances

    • Paper manufacturing

    • Ceramics

    • Chemicals

    • Food and beverages

    • Building materials

    Using this wrapping machine provides dust-proof, moisture-proof, and abrasion-resistant packaging, saving time, effort, and cost.

    • PLC programmable control with selectable wrapping programs and adjustable parameters.

    • User-friendly panel icons for easy operation.

    • Photoelectric sensors for automatic pallet height detection.

    • Turntable soft start/stop with automatic reset.

    • Independent control of top and bottom wrapping cycles.

    • Switchable between automatic and manual operation; minimal daily maintenance required.

  • Model: YK1650F-FB
    Wrapping Size (LWH): 1200 × 1200 × 2000mm
    Turntable Diameter: 1650mm (also available: 1800mm, 2000mm)
    Turntable Height: 80mm
    Turntable Weight Capacity: 1500kg
    Tensile Ratio: 200%–250%
    Turntable Speed: 0–12 rpm
    Packing Efficiency: 20–40 pallets/hr
    Power Supply: 1.32 kW, 220V
    Wrapping Material: Stretch Film W500mm, Core diameter 76mm
    Machine Dimension: 2750 × 1650 × 2350mm
