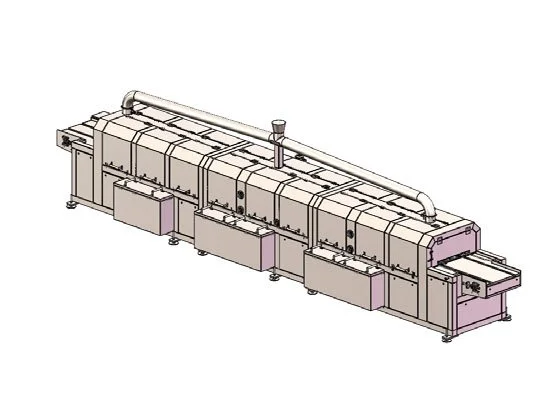

Tray Washer Machine
The Tray Washer Machine is an automated cleaning solution designed to ensure hygienic washing, sanitization, and drying of trays used in food, pharmaceutical, and freeze-drying operations. It provides consistent cleaning performance, reduces manual labor, and ensures compliance with stringent food safety standards.
Model:WPJ01-03
Size（mm）：9585×1700×2000.
Brush configuration: two sets and four brushes.
one set in pre-cleaning sections, and the other set in cleaning sections.
Chain specifications: SS12A-1 straight conveyor chain is used.
Water consumption: 1.3m³ of water is added
Tray moving: It adopts servo motor acceleration and reducer transmission.
Capacity：240-600 trays/hour
Weight（kg）：3500
Material：AISI304
Powe：480V/60Hz/65kw
Core Function
The system automatically washes and sanitizes trays using high-pressure water jets, detergents, and heated rinse cycles. It is optimized for high-throughput operations and integrates seamlessly with tray handling and material flow systems.
Key Features
High-Pressure Multi-Stage Cleaning
Pre-wash, main wash, rinse, and sanitization stages.
Removes meat residues, oils, and biofilm effectively.
Hygienic Design
Constructed from stainless steel (SS304/316L).
Sloped surfaces and open frame for easy drainage and cleaning.
Automation & Efficiency
Compatible with conveyor-fed tray loading and unloading systems.
Optional robotic tray handling for fully automated lines.
Temperature & Chemical Control
Heated wash water up to 80°C for enhanced sanitization.
Automatic detergent dosing and pH monitoring.
Drying System (Optional)
Integrated hot-air or air-knife drying for rapid moisture removal.
User-Friendly Interface
PLC & HMI control panel for recipe-based cleaning programs.
Data logging for compliance and audit reporting.
Technical Specifications
Throughput: 200 – 1,200 trays per hour (customizable).
Tray Size Range: Standard and custom formats (e.g., 400×600 mm, 600×800 mm).
Water Recycling: Integrated filtration and optional heat recovery.
Compliance: Meets FDA, USDA, CE standards.
Applications
Freeze-Dried Pet Food Production
Meat Processing Plants
Food Ingredient Manufacturing
Pharmaceutical and Nutraceutical Lines
Benefits
Labor Savings: Reduces manual tray washing by up to 90%.
Consistent Hygiene: Ensures every tray meets food safety requirements.
Operational Efficiency: Continuous washing capability supports high-volume production.
