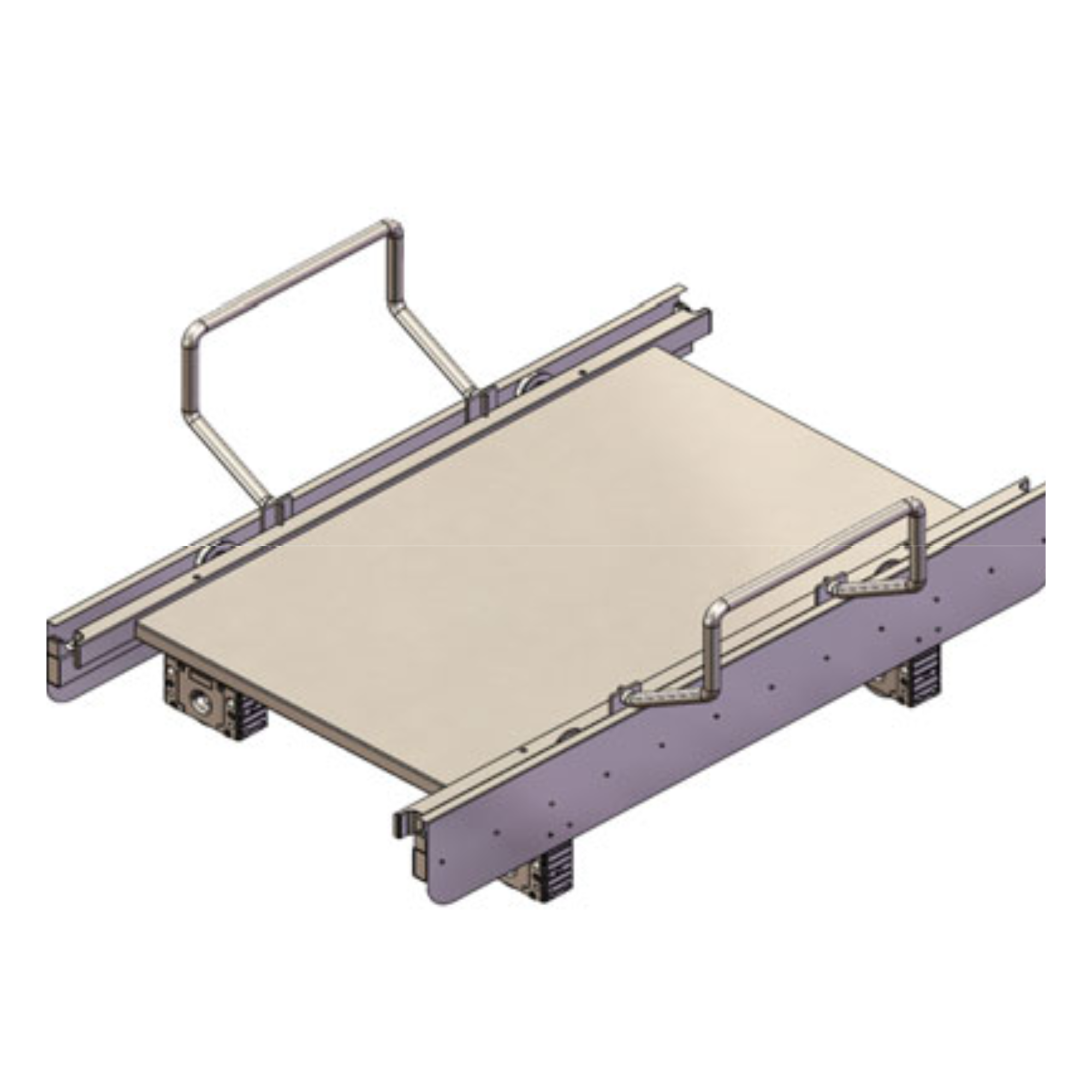

RGV
The Rail Guided Vehicle (RGV) is an automated material transfer solution designed to enhance efficiency and safety in food production, freeze-dry facilities, and cold storage environments. Operating on a fixed rail track, the RGV ensures precise, reliable, and high-speed transportation of trays, trolleys, or material carts between different processing zones.
Model：RGV01
Capacity：1 trolley
Size(mm):2300*1950*980
Weight(kg):300
Material:SS304
Key Features
Automated Material Handling
Transports loaded or empty trolleys and tray carts between loading stations, freeze-dry chambers, and packaging areas.
Integrates seamlessly with tray loading/unloading machines and conveyor systems.
High Precision & Speed
Controlled by PLC-based automation for accurate positioning.
Capable of handling multiple stop points along the rail for flexible operations.
Cold Environment Ready
Designed for sub-zero working conditions (up to -20°C).
Corrosion-resistant materials suitable for hygienic environments.
Safety & Reliability
Equipped with anti-collision sensors, emergency stop, and obstacle detection.
Smooth acceleration and braking to protect products during transit.
Smart Integration
Compatible with Industry 4.0 systems, offering real-time monitoring and remote control.
Optional RFID tracking for cart identification and process traceability.
Technical Specifications
Load Capacity: 500–1,500 kg per cart
Speed: 30–60 m/min (adjustable)
Drive Type: Electric motor with rail guidance
Power Supply: Conductor rail or battery-powered options
Operating Temperature: -20°C to +40°C
Applications
Freeze-Dry Facilities
Wet Meat Processing Lines
Cold Storage Automation
High-Volume Food Manufacturing
Benefits
Labor Reduction: Fully automated transfer eliminates manual handling.
Process Efficiency: Reduces idle time between stages.
Consistent Workflow: Supports continuous, high-capacity production.
