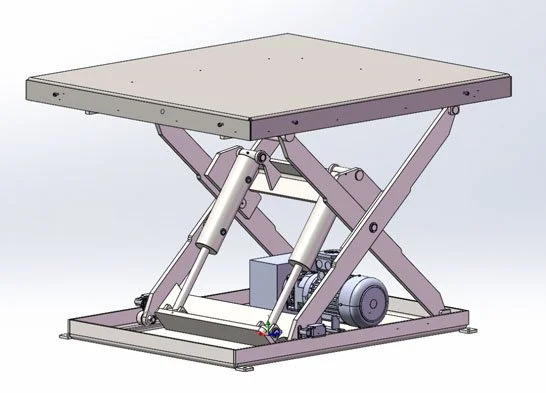

Pallet Lift Description (Freeze-Drying Facility Use)

• Function:
  The pallet lift is used to vertically transfer trolley racks (loaded with freeze-dryer trays) or palletized materials between floor levels, or from conveyor height to loading/unloading systems, ensuring ergonomic and automated handling.

Technical Specifications

• Structure:

  • Heavy-duty carbon steel or stainless steel frame, powder-coated or treated for corrosion resistance.

  • Enclosed or semi-enclosed shaft structure with protective mesh or panels for safety.

• Platform Size:

  • 1200 mm x 1200 mm (adjustable depending on tray rack or pallet dimensions)

  • Load area includes guide rails or locking pins for accurate positioning.

• Lifting Capacity:

  • 500 kg – 2000 kg, depending on design (suitable for full 64-tray racks or multiple pallets)

• Lifting Height:

  • Customizable: typically 1.5 m to 4.5 m (for single- or two-level operations)

• Drive System:

  • Hydraulic, chain-driven, or screw-driven motorized lift with variable speed control

  • Smooth, vibration-free operation to avoid disturbing sensitive products

• Control System:

  • PLC-integrated panel, with automated up/down presets

  • Compatible with IoT and SCADA systems

  • Emergency stop, overload protection, and safety interlocks

• Safety Features:

  • Load sensors, anti-fall safety brakes, light curtains or safety fences

  • Manual override for power failure

  • Bumper strips and soft start/stop mechanism to prevent shock

• Integration Options:

  • Can be integrated with AGV transfer, shuttle conveyors, or robotic arms

  • Positioned at the end of tunnel freezers, loading docks, or between levels of automated warehouse zones
