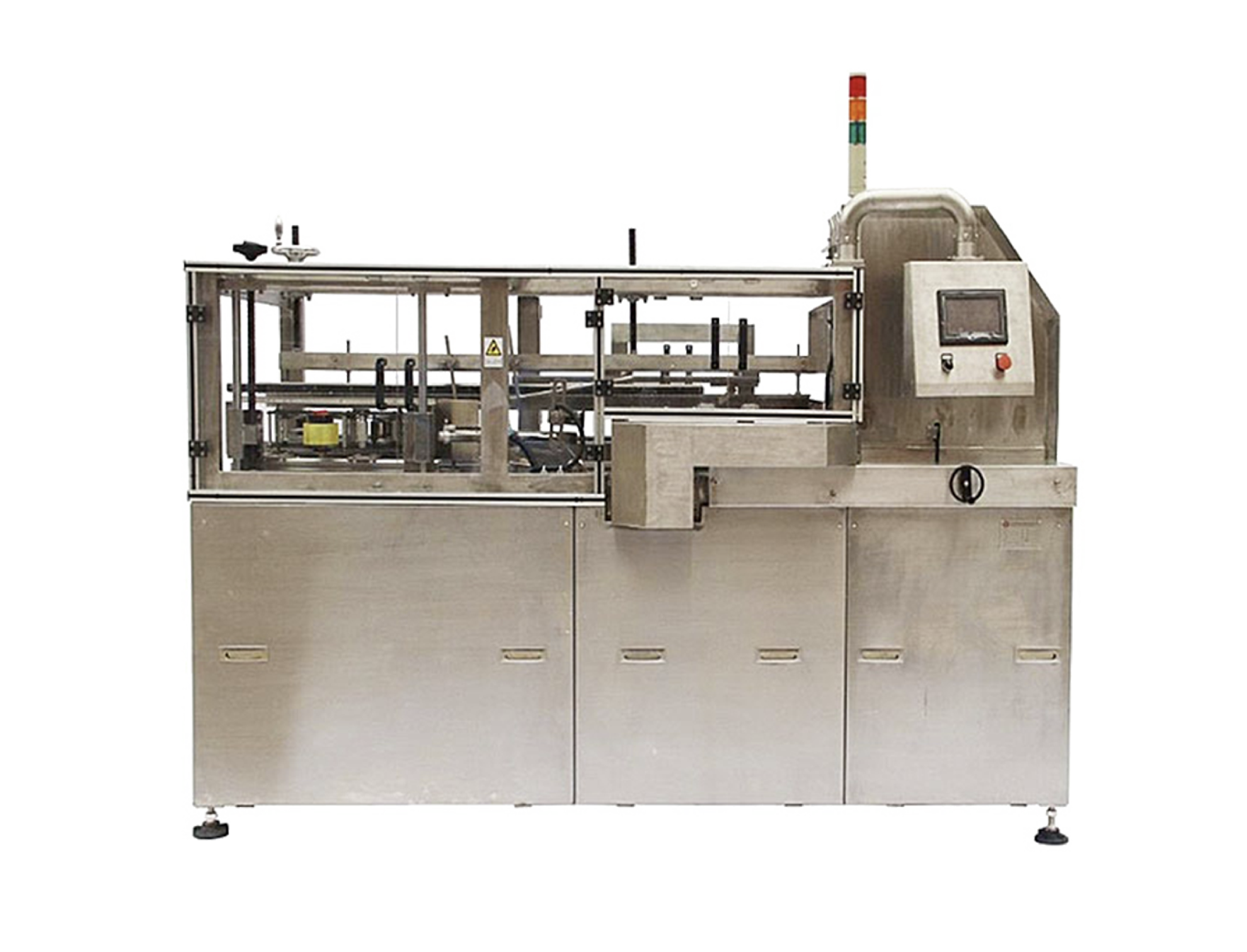

High-Speed Carton Erector
The High-Speed Carton Erector is a fully automated packaging line machine designed for rapid and precise carton forming and bottom sealing. It automatically completes carton opening, bottom flap folding, and bottom sealing at speeds up to 40 cartons per minute.
Equipped with a PLC control system and HMI (Human-Machine Interface), it ensures smooth operation, easy adjustment, and reliable performance. The machine features a horizontal carton magazine that allows refilling without stopping production, making it ideal for continuous high-efficiency packaging environments. Widely used across industries such as food, beverage, pharmaceuticals, consumer goods, and electronics, this system is an indispensable part of modern automated production lines.
Applicable Carton Size (L×W×H) 280–450 mm × 170–300 mm × 160–300 mm
Table Height 1010–1050 mm
Carton Erecting Speed 25–40 ctns/min
Machine Dimensions (L×W×H) 2960 mm × 1348 mm × 1839 mm
Power Supply / Power 380 V, 50/60 Hz, 0.78 kW (customizable per client)
Air Supply 5–6 kg/cm², 300 L/min
Tape Width 48–72 mm (alternative sizes available)
Machine Weight 990 kg
Key Features
Fully Automatic Operation: Automatically performs carton opening, forming, bottom flap folding, and bottom sealing in one continuous process.
Horizontal Carton Magazine: Allows on-the-fly carton replenishment without halting production.
Quick Size Adjustment: Supports multiple carton sizes with manual adjustments—easy and tool-free.
Smart PLC + HMI Control: Advanced Mitsubishi PLC and touchscreen interface for intuitive operation and real-time monitoring.
Precision Mechanical Design: Rigid cam-driven mechanism ensures high precision, smooth movement, and vibration-free performance.
Safety System: Door-open automatic stop and air cut-off enhance operator safety.
Variable Speed Control: Equipped with an inverter for adjustable speed to match line requirements and save labor time.
Durable Construction: Built with precision-machined components for long-term stability and minimal maintenance.
Performance Metrics
Applicable Carton Size (L×W×H) 280–450 mm × 170–300 mm × 160–300 mm
Table Height 1010–1050 mm
Carton Erecting Speed 25–40 ctns/min
Machine Dimensions (L×W×H) 2960 mm × 1348 mm × 1839 mm
Power Supply / Power 380 V, 50/60 Hz, 0.78 kW (customizable per client)
Air Supply 5–6 kg/cm², 300 L/min
Tape Width 48–72 mm (alternative sizes available)
Machine Weight 990 kg
Applications
Food & Beverage Industry: Packaged snacks, frozen food, bottled beverages
Pharmaceutical & Healthcare: Medicine boxes, supplements, and sterile packaging
Daily Chemicals: Detergents, cosmetics, and personal care products
Tobacco & Confectionery: Cigarettes, candy boxes, and bakery goods
Automotive & Electronics: Cable, component, and device packaging
Benefits
High Productivity: Achieves up to 40 cartons per minute, significantly increasing packaging efficiency.
Reduced Labor Costs: Replaces manual box forming and sealing operations, minimizing manpower.
Precision and Consistency: Ensures uniform carton shape and reliable bottom sealing for all carton types.
Enhanced Safety: Built-in safety interlocks automatically stop the machine when the door is open or air supply is interrupted.
Easy Maintenance: Modular mechanical design with minimal lubrication points for reduced downtime.
Seamless Integration: Can be linked with automatic case packers, labeling machines, or conveyor lines.
Ideal for Modern Automation: A vital system for high-speed, large-scale production environments seeking efficiency and stability.
