Technical Specifications

• Frame Material:

  • Constructed from stainless steel AISI 304 (or 316 for highly corrosive environments)

  • Suitable for food-grade and washdown environments, with open-frame design for sanitation

• Belt Type:

  • Modular plastic interlocking belt (easy to clean, allows drainage)

  • Optional food-grade PVC or PU-coated belts for smoother handling of soft/paste materials

  • Cleated or flighted belts available for incline applications

• Dimensions:

  • Width: 400 mm – 1200 mm

  • Length: 2 m – 10 m, depending on plant layout and integration

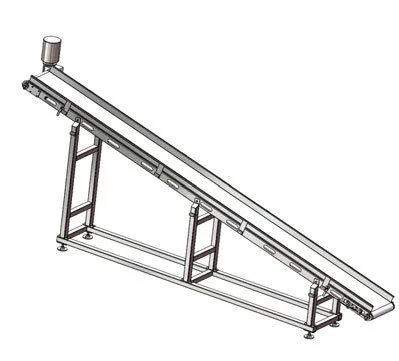

  • Optional inclined section to feed into elevated equipment

• Drive System:

  • Gear motor with direct drive, mounted beneath or beside the belt

  • Speed: Adjustable via Variable Frequency Drive (VFD)

  • Belt speed range: 2–20 meters per minute, based on material flow rate

• Load Capacity:

  • Typically 100–500 kg/hour, scalable for industrial throughput

  • Structural design allows for shock loading during bulk raw material dump

• Support Structure & Height:

  • Adjustable legs or fixed frame

  • Infeed height: 800–1000 mm

  • Outfeed height: Customized to suit downstream equipment (e.g., dicer, conveyor freezer)

• Sanitary & Cleaning Features:

  • Sloped surfaces for drainage

  • Tool-less belt removal

  • Side rails with quick-release for cleaning access

  • Optional belt washers or CIP (clean-in-place) nozzles

• Safety Features:

  • Emergency stop buttons at both ends

  • Photoelectric sensors for blockage/jam detection

  • Safety covers over drive mechanisms

• Integration Options:

  • Can connect directly to hopper loaders, slicers, mixing tanks, or continuous freezers

  • Compatible with ingredient weighing systems and batching software
