• Precision Machining:
  All critical components are processed using CNC machining centers to guarantee exceptional precision and stability.

• Variable Frequency Drive:
  The high-speed cutter adopts frequency conversion speed control, achieving speeds up to 3600 rpm for precise cutting and emulsification.

• Heavy-Duty Bearings:
  The main shaft is equipped with SKF imported heavy-duty bearings, offering strong vibration resistance and a long service life.

• Multi-Layer Bearing Seal Design:
  The bearing housing uses a four-stage sealing system — labyrinth, end-face, radial, and bearing self-sealing — effectively preventing contamination and accidental bearing damage.

• Knife Assembly:
  Equipped with 6 knives (optional 8-knife configuration). The knives are custom-manufactured by a professional supplier, featuring a streamlined blade shape for fine cutting, minimal temperature rise, and short processing time.
  This improves emulsification, elasticity, smoothness, and yield.
  Made from imported materials, using special heat treatment and wire-cutting technology, the knives feature high hardness, wear resistance, and sharpness. A locking system ensures blade security and operator safety.

• Knife-to-Bowl Alignment:
  The knives and bowl maintain precise perpendicular alignment to prevent air from entering the material.
  The clearance between knife tip and bowl is less than 2 mm.
  The rotating bowl is made of cast stainless steel with an anti-overflow edge to prevent leakage.
  The bowl reducer is sourced from Hangzhou Wanjie or Tongli for smooth, reliable performance.

• Knife Guard Cover:
  Elastic-seal knife cover with anti-leakage design, ensuring no material loss during high-speed cutting.

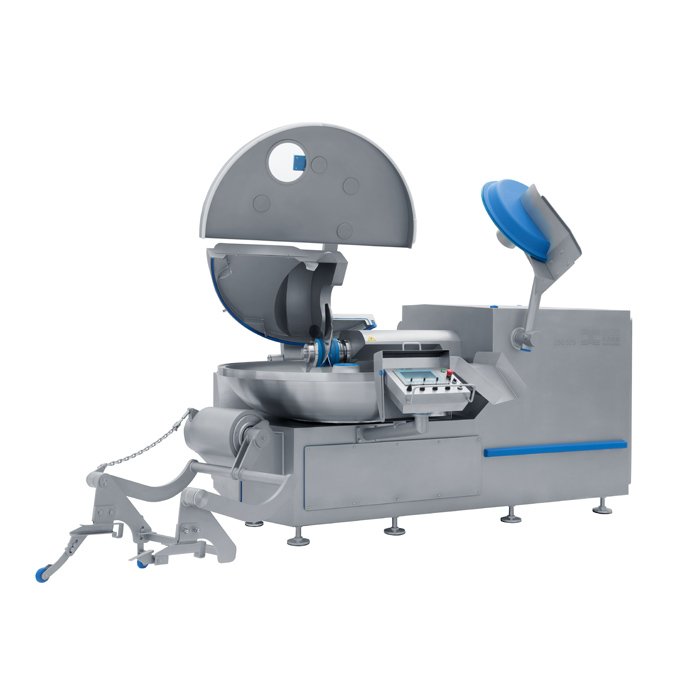

• Hydraulic Lid System:
  The lid consists of front and rear sections controlled hydraulically.

  • The front lid features a transparent feeding port for observing the cutting process and adding ingredients or water.

  • The rear lid uses an elastic sealing system with a safety interlock switch, ensuring excellent sealing and operator safety.

Key Features

• Automatic Discharge System:
  Adjustable discharge plate angle for different material viscosities. The discharge process is clean, fast, and efficient.

• Hydraulic Lifting System:
  The lifting mechanism uses a rotary hydraulic motor with a wide swing angle, smooth operation, and simple structure — no easily worn parts.

• Temperature Monitoring:
  An intelligent electronic temperature sensor continuously monitors material temperature during cutting.

• Electrical System:
  The electrical control cabinet is built into the frame, ensuring waterproof, moisture-proof, and sealed protection. Easy for transport and installation.

• Safety Protection:
  The machine features a built-in interlock switch that automatically cuts power when the rear cover is lifted during operation, ensuring operator safety.
  The control interface adopts a PLC human-machine interface (HMI) for easy operation, allowing storage of multiple product recipes for consistent quality.

• Easy Cleaning:
  The bowl includes a drain valve for quick water removal after cleaning.
  When the rear lid is open, the bowl can be rotated manually for convenient washing.

• Reinforced Frame Design:
  Total machine weight is approximately 8500 kg. The frame is built from thick carbon steel with reinforced square tubes, wrapped in 4 mm stainless steel panels for rigidity.
  The frame undergoes resonance elimination testing to ensure vibration-free operation at high speed.

• Knife Shaft Housing:
  Made from 16 mm SUS304 stainless steel with internal reinforcing ribs for maximum rigidity and strength.
  High-precision machining ensures low vibration and noise during high-speed rotation.

• Hydraulic System:
  Uses premium Taiwan-made hydraulic pumps and control components for stable and reliable operation.

• Hydraulic Feeding and Discharge:
  Both loading and unloading are hydraulically operated, improving efficiency and minimizing material residence time in the bowl, reducing heat buildup.

• Automatic Lubrication System:
  The main knife shaft features automatic lubrication, preventing bearing wear due to missed manual oiling.

Performance Metrics

• Bowl Capacity40–750 L (customizable)

  Knife Speed500–4,500 rpm

  Bowl Speed5–25 rpm

  Power Supply380V / 50Hz / 3 Phase

  Total Power25–120 kW

  Output Capacity200–1,200 kg/h

  MaterialSUS304 Food-Grade Stainless Steel

Applications

• Sausage, ham, and meatball production

• Fish paste and seafood surimi processing

• Plant-based and vegan protein blending

• Cheese, fillings, and condiments production

• Pet food and ready-to-eat meal preparation

Benefits

• Fine Cutting & Mixing Performance – Produces smooth and uniform emulsions with stable texture.

• High Production Efficiency – Rapid cutting and mixing cycles reduce processing time and labor.

• Low Heat Generation – Maintains product freshness, flavor, and color.

• Durable & Hygienic Design – Made entirely of SUS304 stainless steel, corrosion-resistant and easy to clean.

• User-Friendly Control System – Equipped with automatic speed regulation, programmable settings, and safety protection features.

• Versatile Use – Suitable for both fresh and frozen meat as well as non-meat ingredients.
