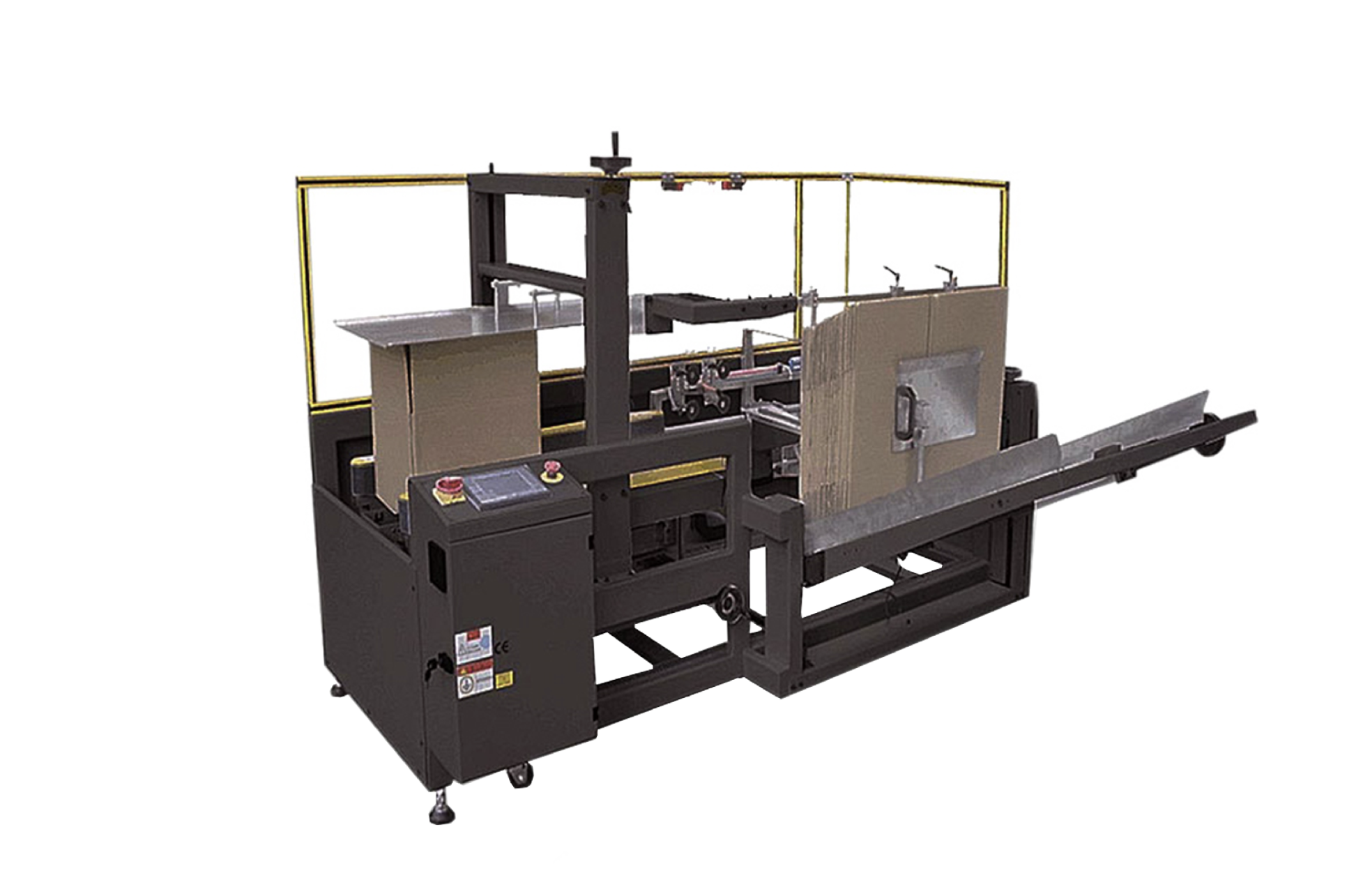

Automatic Medium-Speed Carton Erector
The Automatic Medium-Speed Carton Erector is designed to efficiently form and seal carton bottoms for automatic packaging lines. It automatically completes carton opening, forming, bottom flap folding, and bottom tape sealing in one continuous operation. Using PLC and touchscreen control, the machine ensures stable performance, easy operation, and seamless integration with downstream case packers. It is an essential piece of equipment for medium- to large-scale automated packaging operations.
Applicable Carton Size (L×W×H) 250–450 mm × 160–400 mm × 100–350 mm
Table Height 610–650 mm
Carton Opening Speed 12–16 ctns/min
Machine Dimensions (L×W×H) 2645 mm × 2200 mm × 1486 mm
Power Supply / Power 220 / 380 V, 1PH/3PH, 50/60 Hz, 0.5 kW (customizable)
Air Supply 5–6 kg/cm², 500 L/min
Tape Width 48–72 mm (optional sizes available)
Machine Weight 600 kg
Key Features
Automatic Operation: Fully automated carton forming, bottom folding, and bottom sealing for continuous production lines.
Smart Control System: Equipped with a PLC control system and touchscreen interface, offering intuitive operation and easy adjustment.
Flexible Carton Range: Compatible with various carton sizes; can be customized according to client specifications.
Reliable Sealing: Uses adhesive tape sealing for strong, neat, and consistent bottom closures.
Compact and Durable Design: Made of high-strength materials for long service life and minimal maintenance.
Integration Ready: Can be linked directly with automatic case packers, labeling machines, or conveyor systems.
Performance Metrics
Applicable Carton Size (L×W×H) 250–450 mm × 160–400 mm × 100–350 mm
Table Height 610–650 mm
Carton Opening Speed 12–16 ctns/min
Machine Dimensions (L×W×H) 2645 mm × 2200 mm × 1486 mm
Power Supply / Power 220 / 380 V, 1PH/3PH, 50/60 Hz, 0.5 kW (customizable)
Air Supply 5–6 kg/cm², 500 L/min
Tape Width 48–72 mm (optional sizes available)
Machine Weight 600 kg
Applications
Food and beverage industries
Pet food and agricultural products
Consumer goods and daily chemical packaging
E-commerce and logistics centers
Pharmaceutical and healthcare product packaging
Benefits
Increased Efficiency: Automates repetitive box forming tasks, supporting continuous high-speed production.
Reduced Labor Costs: Minimizes manual handling and labor intensity.
Consistent Carton Quality: Ensures precise forming and reliable sealing for every carton.
Easy Operation & Maintenance: Intuitive controls and low maintenance requirements reduce downtime.
Flexible Customization: Supports customized carton dimensions, tape sizes, and power configurations to suit diverse production needs.
